Type 型号 |
Rated Input/Output Current 额定输入/输出电流 |
RATIO 圈数比 |
Phase error（Sampling resistance 20Ω） 相位差(取样电阻20Ω) |
线性 范围 Sampling resistance 20Ω |
线性度(取样电阻20Ω) degree of linearity |
绝缘耐压 Dielectric strength |
工作温度 Working temp. |
密封材料 Sealing material |
安装方式 |
|

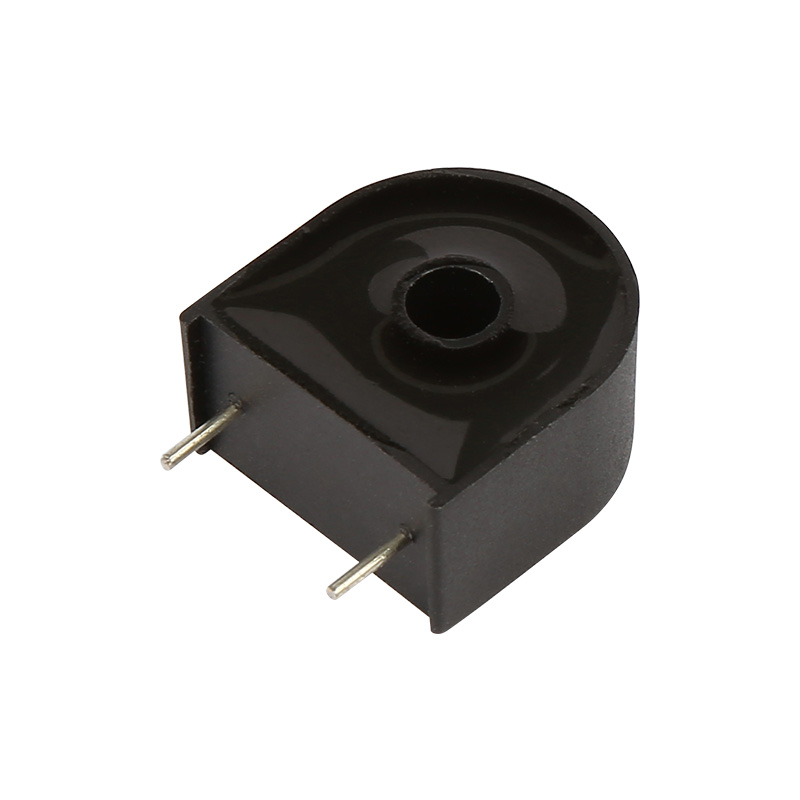

B-03A |
5A/2.5mA |
2000:1 |
≤10’ |
0-20A |
≤0.2% |
4.5KV/1mA 1 minute |
-40℃~+75℃
|
环氧 树脂 Epoxy resin
|
PCB |
|
B-03B |
5A/2.5mA |
2000:1 |
≤20’ |
0-20A |
≤0.2% |
4.5KV/1mA 1 minute |
|||
|
B-03C |
5A/2.5mA |
2000:1 |
≤30’ |
0-20A |
≤0.2% |
4.5KV/1mA 1 minute |
